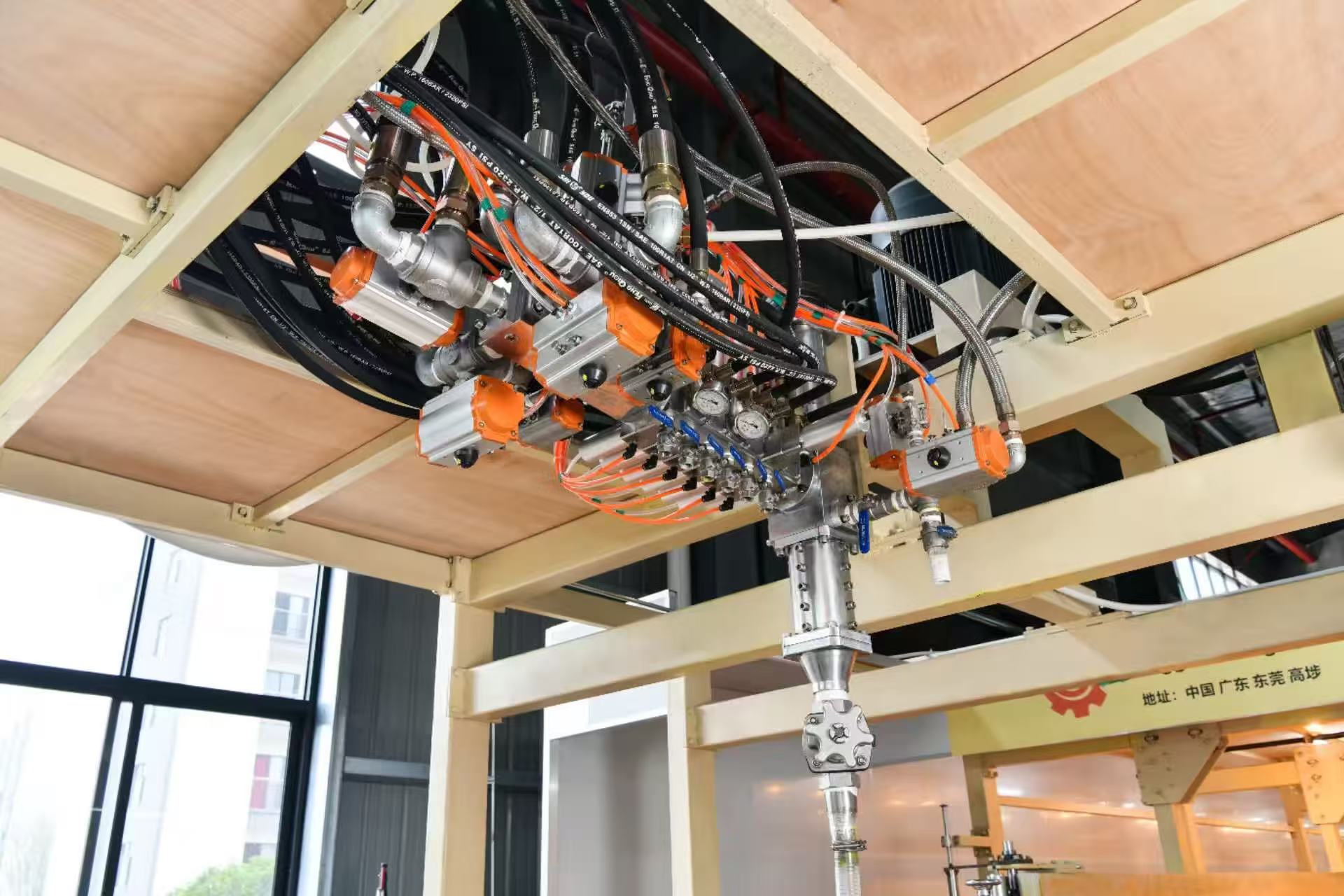

PU Foam Mixing Head & Piping System
Foam‑Oriented Custom Mixing Head with Pressure Gauge and Automatic Cleaning Function
Mixer and Pipeline Connecting System
Specialized mixing head and pipeline connection system designed according to different foam production requirements.
Mixing Head & Pipeline Connection Solution
The mixing head is specially designed according to different types of foam and production requirements.
The system uses a 45 kW mixing motor to support the mixing process.
All connecting pipes are equipped with pressure meters to display pipeline pressure and are arranged according to the foaming process requirements.
The system is equipped with air valves, injection valves and an automatic cleaning system.
System Information
Designed for Reliable Mixing & Material Delivery
Customized Mixing Head
Mixing head structure is specially designed according to different foam types and production requirements.
45 kW Mixing Motor
The mixing system is equipped with a 45 kW motor for the mixing process.
Pressure Monitoring
Connecting pipes are equipped with pressure meters to indicate pipeline pressure during operation.
Process-Based Pipeline Layout
Pipeline routing is arranged according to the required foaming production sequence.
Air & Injection Valves
The system is equipped with air valves and injection valves for material and air control.
Automatic Cleaning
An automatic cleaning system is integrated into the mixing and pipeline system.
Pipeline Connection & Monitoring
Pressure meters are installed on the connecting pipelines to indicate operating pressure.
The pipeline connection sequence is designed according to the requirements of the foaming process.
Air valves are integrated into the pipeline system for process control.
Injection valves are used as part of the material delivery and control system.
Mixing & Pipeline Workflow
Mixer & Pipeline Connecting System
A complete mixing and pipeline solution integrating customized mixing head design, 45 kW motor drive, pressure monitoring, air and injection valves, and automatic cleaning functions.
